Journal of Neurology & Neurophysiology

The mesocorticolimbic dopamine system and the nigrostriatal dopamine system both contribute to cue-induced cocaine seeking [1-3] and other behavioral effects of cocaine, including cocaine reward [4,5]. It is well known that areas from prefrontal cortex (PFC) that are involved in these drug-related processes are activated when drug addicted are exposed to either the drug or some drug-cue [6-14] postulated that this enhanced activity of PFC could contribute to the compulsive self-administration and the lack of control (impaired inhibition) in addicted subjects and also contribute to disruptive cognitive operations that impair judgment and favor relapse [14].

Experimental investigations of addictive phenomena by using a cuereactivity paradigm have been performed extensively [15-18] and a growing amount of evidence suggests that electroencephalographic activity of frontal-central areas increases when cocaine users are exposed to pictures of cocaine compared to neutral images [19-21]. Using scalp surface electrodes, the event-related potential (ERP) can be recorded in response to a variety of sensory stimuli, and much information can be obtained from these electrodes after a given task with a high temporal resolution.

One of the most studied endogenous ERP components is the P3 wave, which is the largest positive going peak occurring within a time window of 250-500 ms. The P3 wave is typically observed in more anterior brain areas [22] and is sensitive to general and specific arousal, contributing to attention activation and information processing [23]. The association between P3 amplitude and cue-reactivity has been described in volunteers with history of cocaine use [8,24] and other drugs [25,26]. These studies report increased craving after the presentation of drug-related cues, as well as an increased P3 amplitude.

The tDCS is a technically simple tool of non-invasive brain stimulation used to modulate neuronal resting membrane potential in humans leading to changes of cortical excitability [27-29] and it is well established that cathodal current decreases cortical excitability while anodal current increases excitability [30-33].

Our hypothesis is that tDCS over DLPFC (applied just before cuereactivity paradigm) is able to change the cortical activity in this area during the cognitive potential P3 while crack-cocaine users are visualizing drug cues.

So, the objective here is to unprecedentedly investigate the neurophysiological effect of tDCS on the brain of crack-cocaine addicted patients through the cue-reactivity paradigm to check if neuromodulation is able to change brain activity while they are visualizing drug cues.

These are preliminary studies in order to cautiously advance with the proposal of using tDCS in the treatment of crack-cocaine dependence.

Subjects

This study included sixteen crack-cocaine addicted subjects as defined by the DSM-IV, recruited from the Center for Psychosocial Care for treatment of abuse and dependence of psychoactive substances disorders in Espírito Santo, Brazil. All participants had normal or corrected-to-normal vision.

The inclusion criteria for this study were: (1) patients between the age of 18 and 60 years; (2) met criteria for crack-cocaine dependence according to the Diagnostic and Statistical Manual of Mental Disorders, fourth edition (DSM-IV), as determined by clinic evaluation; (3) no more than 30 days of abstinence; (4) in stable clinical condition with no need for inpatient care; and (5) able to read, write, and speak Portuguese. Conversely, exclusion criteria included: (1) a diagnosis of epilepsy, convulsions, or history of severe brain injury; (2) any contraindication for electrical brain stimulation procedures such as electronic implants or metal implants; (3) suspected pregnancy for female participants; and (4) cardiac pacemaker.

Treatment and data collection were conducted according to the ethical principles in the Declaration of Helsinki, which are equivalent to those established by the Ethics Committee for Research at the Center of Health Sciences, Federal University of Espírito Santo, Brazil where this study was conducted. Ethical approval for this study was provided by the Brazilian Institutional Review Board of the Federal University of Espírito Santo (registration 296/10), Brazil. We are presenting results from the study registered at the ClinicalTrials.gov Protocol Registration System under identifier NCT01337297.

The sixteen subjects enrolled in this study were divided into two groups that received two types of electrode placement: 1) six subjects received left anodal tDCS; 2) ten subjects received left cathodal/right anodal tDCS. The protocol of left anodal tDCS had to be interrupted because all patients that were receiving the real procedure were relapsing. At this point, we changed the electrode placement and continued the trial. At this manner, the results from anodal tDCS were not considered because of the very small number. This observation also reinforces the need of cautiously including a limited number of patients in these preliminary studies of the use of neuromodulation in addicted subjects.

They were fully informed about the experimental protocol and voluntarily signed an informed consent form and randomly assigned to receive real brain stimulation (tDCS group) or receive a simulation of this procedure (sham-tDCS group). The experimental protocol consisted of global physical and clinical examination and electrophysiological recording of brain activity during the random visual presentation of three drug-related images and three neutral images before and after a single session of tDCS.

EEG recording

The electrophysiological recording was obtained through a 32- channel system (QuickAmp40, BrainProducts Ltd., Munich, Germany) using active electrodes with an integrated impedance converter for noise subtraction circuits (actiCAP BP; BrainProducts Ltd, Munich, Germany) placed on the scalp following the International 10/20 system. Data were recorded with a sampling rate of 1000 Hz, analog filtered between 0.016 and 1000 Hz with common average reference.

Experimental design and task

We adapted a cue-reactivity paradigm [34] following standard cue reactivity paradigms well established for pictures [35] and videos [36]. During the pictures presentation the subjects were asked to press a button whenever the crack-related pictures were presented, and to withhold the response (50%) when the neutral pictures were presented. This allowed us to assert that patients were aware about pictures presentation and the number of errors (false or miss) of the subjects included in this study was zero or 1.

Stimuli

Three pictures related to the consumption of crack-cocaine (i.e., crack-related cues) such as crack rocks, pipes or paraphernalia used for substance use, and someone inhaling the substance constituted the target visual stimuli. Meanwhile, three neutral pictures that were unrelated to the consumption of crack (i.e., neutral cues) such as a landscape with a small road, a field of flowers, and a butterfly constituted the non-target visual stimuli.

The trial consisted by the running of a randomized sequence of 90 visual presentations (15 times for each picture) approximately at eye level, using a 17 inch monitor (1280 × 1024 × 32-bit color, 60 Hz refresh rate). Each picture was presented for 1000 ms, at intervals of 2000 ms, so the entire procedure lasted 4.5 min. The default screen consisted of a black background at all times. All pictures were presented using Presentation 10.0 software (Presentation, Neurobehavioral Systems, Inc, Albany, CA).

Data processing

All EEG data were processed using BrainVision Analyzer 2.0 Professional (BrainProducts Ltd., Munich, Germany). Data were offline filtered from 1 Hz to 10 Hz and after ocular correction by independent component analysis and visual inspection for artifact removal all datasets were segmented into epochs from -200 to 800 ms relative to picture onset and averaged. All epochs were retained. Baseline correction was performed using the prestimulus interval (i.e., -200 to 0 ms). Low-resolution brain electromagnetic tomography (LORETA) was used to estimate the three-dimensional intracerebral current density distribution (μA/mm²). Together with the high temporal resolution of ERP, these functional images of electric neuronal activity have been exploited successfully in applications that validated LORETA with Magnetic Resonance Imaging (MRI) and Positron Emission Tomography (PET) findings [37-40]. In this study we focused our analysis on DLPFC as the region of interest (ROI) and the mean of LORETA absolute value from 350 ms to 600 ms (P3) from this ROI was plotted. Middle frontal gyrus including Brodmann areas 9 and 46 was the evaluated area accurately during P3 segment.

Brain stimulation

Direct currents were transferred via a pair of carbonated-silicone electrodes (35 cm²) with a thick layer of high conductive gel for EEG underneath them according to our previous study [41]. The electric current was delivered by an electric stimulator (Striat, Ibramed Indústria Brasileira de Equipamentos Médicos Ltd, São Paulo, Brazil). For brain stimulation, the cathode electrode was placed over F3 (left DLPFC) and anode over F4 (right DLPFC) according to the 10–20 international system.

The currents flowed continuously for 20 min with an intensity of 2.0 mA. For the sham procedure, the electrodes were placed in the same position, but the stimulator was turned off after 20 s (gradually from 2 mA to 1 mA and then was off) in such a way that subjects felt the initial itching sensation at the beginning, but received no current for the rest of the stimulation period. This procedure allowed keeping subjects blind for the respective stimulation condition [42].

Statistical analyses

Data were presented by mean and standard deviation (S.D.). Once data from DLPFC activity in line with days of abstinence were normally distributed (D'Agostino-Pearson omnibus normality test) linear regression was performed and P value was according to Pearson correlation. The effect of tDCS was analyzed with the Wilcoxon test, since the differences in activity between before and after tDCS did not fulfill the criteria for normality. A p-value of 0.05 or less was considered to indicate a statistical significance. GraphPad Prism 6.0 (GraphPad Software Inc, USA) was employed for statistical analysis and graphic presentations.

Sample

Ten crack-cocaine dependents that had no more than 30 days of abstinence were included in these preliminary findings. Concomitant use of other drugs of abuse includes alcohol, nicotine, marijuana and cocaine. Comorbidities present were mood disorder (depression), generalized anxiety disorder and bipolar disorder. The standard of crack use, considering the number of rocks per week, varied from 5 to 50. The list of medication included in this study, their classes and doses are presented in the table below (Table 1).

Table 1: List of medication, class and dose from patients included in this study.

DLPFC activity from early abstinent crack-cocaine users

The cortical activity was measured during the visual cue-reactivity paradigm. The points at the graphic (Figure 1) correspond to the mean of absolute value from DLPFC LORETA from 350 to 600 ms relative to picture onset indicating the activity of DLPFC during the P3 brain cognitive potential while subjects were visualizing crack-related pictures.

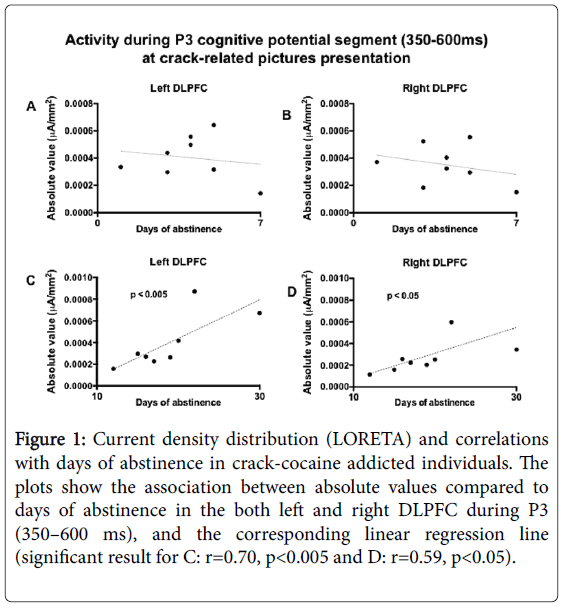

Figure 1: Current density distribution (LORETA) and correlations with days of abstinence in crack-cocaine addicted individuals. The plots show the association between absolute values compared to days of abstinence in the both left and right DLPFC during P3 (350–600 ms), and the corresponding linear regression line (significant result for C: r=0.70, p<0.005 and D: r=0.59, p<0.05).

Up to seven days, the DLPFC activity had no correlation with time of abstinence. However, the significant effect of this early abstinence in the DLPFC activity starts to appear from the tenth day, from when the increase of activity is correlated with days of abstinence (D'Agostino and Pearson omnibus normality test followed by linear regression; p=0.0045 for left DLPFC and p=0.014 for right DLPFC, Pearson correlation coefficients were computed).

ERP before and after tDCS

Subjects received real or sham tDCS. No significant difference was found between them related to the days of abstinence (sham=15.25 ± 11.66, n=5; tDCS=10.22 ± 7.22, n=5; p=0.2959, unpaired t-test).

Absolute values of DLPFC activity were analyzed before and after brain stimulation (Figure 2). The tDCS was able to prevent the increasing P3 brain activity on the left DLPFC when patients were visualizing drug cues (p<0.0001; Wilcoxon nonparametric paired test).

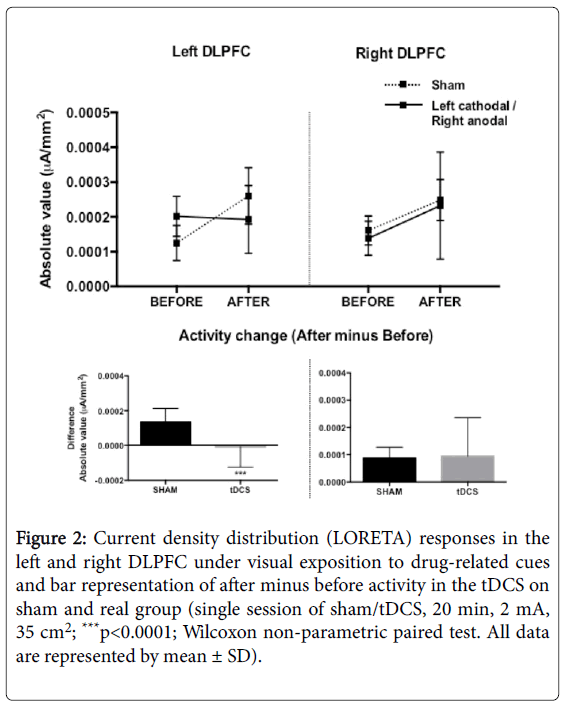

Figure 2: Current density distribution (LORETA) responses in the left and right DLPFC under visual exposition to drug-related cues and bar representation of after minus before activity in the tDCS on sham and real group (single session of sham/tDCS, 20 min, 2 mA, 35 cm²; ***p<0.0001; Wilcoxon non-parametric paired test. All data are represented by mean ± SD).

In this study we observed that the brain activity measured precisely during P3 cognitive potential from both left and right DLPFC of crackcocaine users increases from the tenth day of abstinence. Hereafter, we observed that a single session of left cathodal/right anodal tDCS over DLPFC prevented the increase of the brain activity in the left DLPFC while patients were visualizing crack-related pictures. No difference was observed in the right DLPFC.

A great challenge of studying neuromodulation is the variety of factors associated with drug dependence, as comorbidities - generally mood and anxiety disorders, concomitant drug use and different classes of medication used for the treatment of those comorbidities. The standardization of the treatment for each drug abuse dependent will be benefited by trials with lager samples and our team has been working in this sense. Far as we know, we are the first group purposing neuromodulation in the treatment of crack-cocaine dependence and the aspects that strengthen the use of tDCS is its described effect on cognitive function. Cognitive impairment is a common mechanism in drug abuse, which involves the prefrontal cortex function. So, the focus of prefrontal cortex neuromodulation as an alternative treatment of crack-cocaine dependence is to increase the cognitive function allowing better control over drug use as discussed below. Following this rationale, cortical neuromodulation can be also purposed for the treatment of other drugs of abuse as we have suggested [43].

The PFC activity increases when patients are facing the drug or some drug-related cues. This evidence suggests that the PFC, at this condition, may be much more involved in the craving response rather than in the control over it. It was already showed that the metabolism in the PFC of cocaine-addicted subjects exposed to a stimulant drug is increased (an effect that was associated with craving for the administered drug) while non-addicted subjects exposed to the same drug had decreased metabolism in these regions. Thus, the activation of these prefrontal regions with drug exposure may be specific to addiction and associated with the enhanced desire for the drug [44]. Furthermore, the enhancement of activity in drug-related processes including emotional responses (medial OFC and ventromedial PFC in craving), automatic behaviors (OFC in drug expectation and ACC in attention bias) and also higher-order executive responses through the activation of the DLPFC involved in drug-related working memories [44] may constitute the prominent factor that precedes relapse.

While short-term abstinence was proposed to increase cue-induced response in the PFC, it was proposed that cognitive intervention attenuates this response [45]. When cocaine abusers purposefully inhibit craving when exposed to conditioned drug-cues, specific changes in brain regions that process reward and prediction of reward occur, or else, regions involved in processing conditioned responses decrease their activities. According to Volkow et al. [46] “The frontal mediation of a neural circuit involved in the craving response provides a target for topdown cognitive interventions that may be therapeutically beneficial. Interventions that strengthen a weakened but still functional fronto-accumbal circuit may increase the ability of cocaine abusers to block or reduce the drug craving response.” Following this rationale, we are now moving toward the investigation of the effects of cathodal tDCS modulation of the left DLPFC once we observed in this study that cathodal tDCS over the left DLPFC decreased the DLPFC activity during crack-cue visualization.

Experimental studies have shown that exposure to drug-related stimuli increases cravings in drug-dependent individuals. However, the most commonly used measures are subjective self-reports, which assess the ‘desire’ for a particular substance though objective physiological and behavioral responses can also be measured. ERPs studies have been increasingly used for a more objective measurement of the motivational attribute of drug-related stimuli in human subjects. In spite of its low spatial resolution, ERPs have an excellent temporal resolution, allowing the investigation of the time course of emotional processing and drug cue reactivity. We enforce this tool as an objective outcome for research in the cognitive field considering that ERPs capture different stages within emotional processing and other components can be evaluated. An elegant study conducted by Dunning et al. found that deficient electrophysiological response to pleasant and unpleasant images was most evident during later processing in current users of cocaine; still according to these authors, this deficit may be indicative of impairments in sustaining non-drug-related goaloriented motivation, predisposing addicted individuals to drug use as a mechanism compensating for the reduced response to other reinforcement (including reward) [20].

Transcranial electric activity has been shown to be associated with frontal-related cognitive changes in healthy subjects and several psychiatric conditions [47-55]. Previous study from our lab showed specific clinical and electrophysiological (as indexed by P3) effects of tDCS on patients with alcohol dependence in which we demonstrated that anodal tDCS over left DLPFC resulted in an improved cognitive function [41]. Not only transcranial, but also epidural stimulation was already used to study emotion regulation and the impact of cognitive control on neural response to visual stimuli. Hajcak et al. [56] studied five patients with treatment-resistant mood disorders stereotactically implanted with stimulating paddles over DLPFC bilaterally and this study corroborated the role of DLPCF in regulating measures of neural activity that have been linked to emotional arousal and attention. Though the number of studies on frontal neuromodulation has been growing in psychiatric disorders, efforts are needed to propose this technique as an effective repetitive therapy in the treatment of such conditions.

Other issues that must be considered here are the possible mechanisms involved in the process of drug dependence development. There are evidences that neuroinflammation plays a role in the pathophysiology of addiction. Inflammatory cytokines are able to increase expression and activity of some neutrotransmitters, as dopamine and serotonin, or their receptors or any protein involved in their presence and activity in the synaptic cleft [57]. These neurotransmitters can induce a psychostimulant effect, which can mimics brain reward induced by drug administration. Additionally, drug abuse is involved in the up-regulation of inflammatory mediators [58]. These findings show that the pathways involved in the neuromodulation as treatment for addiction can be broadly explored.

There are limitations of this study that need to be considered. Samples of crack cocaine users were small because of their own clinical characteristics (high rates of drop-outs, low adherence to biopsychosocial or to any other therapeutics, etc.) and the complexity of the experimental protocol (clinical and cognitive evaluation, EEG/ ERP, tDCS), limiting assumptions about the clinical relevance of our findings. However, all data have been supported by the most cited literature in drug addiction.

Our findings show that crack-cocaine users during early abstinenceespecially from the tenth day-have a growing increase in the DLPFC activity during P3 cognitive potential (350-600 ms) while they are visualizing drug-cue. Hereafter, we observed that prefrontal tDCS modulates the DLPFC response to drug cue exposure. These data encourage additional studies on the cortical neuromodulation as an alternative tool in the treatment of drug addiction.
