Pain Relief Following Radio Frequency Energy Chondroplasty for Isolated Chondral Lesions of the Knee

Timothy Woodacre*, Anna Thomas and Vipul I Mandalia
Royal Devon and Exeter Hospital, Exeter, Devon, England, UK
*Corresponding Author: Timothy Woodacre, The Knee Unit, Princess Elizabeth Orthopaedic Centre, Royal Devon and Exeter Hospital, Barrack Road, Exeter, Devon, England, UK, Tel: +447824393322 Email:


Purpose: We assessed the pain relief achieved by patients following radio frequency energy chondroplasty (RFC) for isolated chondral lesions in the knee.

Methods: Retrospective analysis was completed of operative notes and arthroscopic images of all patients who underwent arthroscopic chondroplasty at the Royal Devon and Exeter Hospital between January 2009 and June 2012. Inclusion criteria included 1 to 2 defined chondral lesions, less than 2 cm2, of Outerbridge grade II-III, treated via arthroscopic RFC. Exclusion criteria included diffuse articular cartilage damage, additional pathologies affecting the knee or subsequent further injuries or invasive procedures to the knee. Data was collected via a questionnaire assessing patient outcome.

Results: 35 patients met the inclusion criteria, 32 were successfully contacted. Male: female ratio was 16:16, with a mean age of 39.5 (range 19-60).84% (n=27) of patients experienced a significant reduction in pain (mean reduction of 51%, (95% CI 41% to 61%), p<0.001) lasting until the time of study (median of 21 months, range 9 to 31 months). There was no correlation between change in symptoms and cause, site or grade of chondral lesion. There was no significant change to Cincinnati sports activity pre and post RFC. Pre-operative instability symptoms did not significantly improve following RFC. Satisfaction with treatment was in direct correlation with pain relief achieved.

Conclusions: Our study adds to current literature by suggesting short term improvements to pain purely following the use of RFC on isolated chondral lesions.

Keywords: Chondroplasty, Chondral lesions, Arthroscopy


Partial thickness chondral defects are a common occurrence, being found in 60% of knee arthroscopies [1]. If left untreated they are known to worsen in size and symptoms, with swelling, delamination and fibrillation of the articular cartilage reducing its ability to deal with load [2,3]. Chondroplasty is a recognised treatment for pain associated with chondral damage [4]. Radiofrequency Energy Chondroplasty (RFC) is increasing in use following greater understanding of its underlying cellular effects [5-7]. RFC has been shown to give an improved outcome, both macroscopically and microscopically, when compared to mechanical chondroplasty, with decreased lesion fibrillation, reoccurrence and progression, and purportedly improved cartilage microstructure [5,7-9]. The long term sequelae and clinical outcomes of RFC have been poorly demonstrated. A recent literature review by Kosy et al. supported its use, demonstrating improved mechanical stability, with decreased pain and improved functional scores when comparing RFC to mechanical chondroplasty, but highlighted the lack of clinical evidence demonstrating long term outcome or risks [10].

We conducted a retrospective study on patients undergoing RFC of isolated chondral defects in the knee to assess post-operative pain relief and return to function. This paper highlights the short-term clinical outcomes.

We hypothesised significant short term improvement to pain following RFC of isolated chondral lesions of the knee.

Materials and Methods

Retrospective analysis was performed on all patients who underwent regional arthroscopic RFC between 2009 and 2012. Operative notes and arthroscopic images were analysed for study inclusion.

Inclusion criteria

• Arthroscopy of the knee performed between January 2009 and June 2012

• All ages

• 1 to 2 defined chondral lesions, each less than 2 cm2 of Outerbridge grade II-III, treated via RFC.

• 1 defined chondral lesion less than 2 cm2 of Outerbridge grade II-III treated via RFC, in the presence of one defined chondral lesion less than 2 cm2 of Outerbridge grade 4, edges annealed with RFC.

• Size of lesion was determined via analysis of intra-operative arthroscopic photos comparing lesion to probe size.

Exclusion criteria

• Additional pathology identified within the knee by diagnostic arthroscopy or pre-operative MRI, such as meniscal tears, cruciate damage or a collateral sprain.

• 1 to 2 chondral lesions each larger than 2 cm2

• 3 or more chondral lesions regardless of size

• Chondral lesions of Outerbridge grade 4 not fulfilling inclusion criteria

• Chondral lesions treated via alternative methods (for example, mechanical chondroplasty or micro fracture)

Diffuse articular cartilage damage

• Subsequent further injury or invasive procedure (repeat surgery or artificial synovial fluid injection) to the identified knee. Patients undergoing further targeted physiotherapy were not excluded.

Operative technique

Standard antero-medial and antero-lateral arthroscopy portals were used in all cases. Diagnostic arthroscopy of all compartments was performed to ascertain all underlying pathology. All cases were irrigated with normal saline at room temperature and employed suction to increase irrigation flow during RFC, reducing the potential risk of thermal necrosis. Bipolar radiofrequency electrical therapy utilising Arthrocare Sports Medicine Wand systems was employed in all cases. The specific technique for the use of the RFC probe was as described by Kosy et al. [10] A single pass of the RFC probe to each specific area of each lesion was employed to achieve a stable rim. Further passes were limited to regions not already treated as multiple passes of the same area have been shown not to improve results when actively in use the probe was kept continually moving to reduce point heating and the potential for local damage [10].

Post-operative management

All patients were initially given a standard post-operative physiotherapy regime, involving range-of-motion, proprioception and quadriceps resistance exercises. All were followed up in an orthopaedic surgeon-led clinic.

Data collection

Patients were sent retrospective questionnaires with objective and subjective scoring of change in pain following RFC.

Data analysis

Change in outcome pre and post RFC was analysed via Wilcoxon statistical analysis to determine significance.


3174 patients underwent knee arthroscopy by the Royal Devon and Exeter NHS trust between January 2009 and June 2012. 218 patients underwent arthroscopic chondroplasty. 36 patients were suitable for inclusion within the study, with the majority of patients excluded due to the presence of additional pathology within the knee (principally meniscal tears) or the articular damage being too large and diffuse. 2 patients were excluded due to receiving additional treatment post RFC (2 artificial synovial fluid injections). Of the suitable 36 patients, 32 were successfully contacted to participate in the study. Male: Female ratio was 16: 16. Mean age at time of surgery was 39.5, range 19-60.


100% of patients (n=32) presented with pain within their knee. 41% (n=13) reported pre-operative feelings of knee instability. Only 38% (n=5) of patients experiencing pre-operative instability reported complete resolution of instability post-RFC (Figure 1).

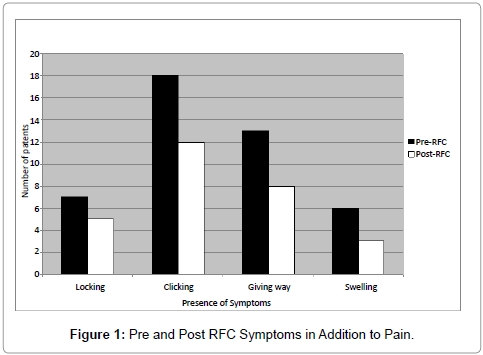

Figure 1: Pre and Post RFC Symptoms in Addition to Pain.

Pain control

A visual pain analogue scale out of 10 was utilised to compare patients’ pre-operative pain and their current levels of pain at the time of the study.

13% (n=4) reported no change to their pain, 3% (n=1) reported an improvement in pain of only 1 out of 10 following RFC (Figures 2 and 3).

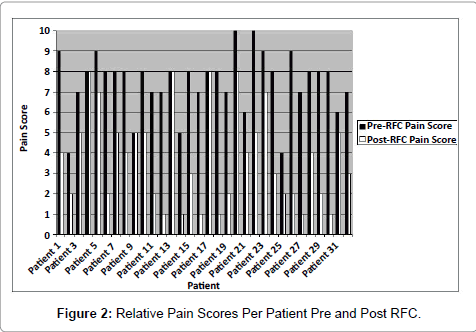

Figure 2: Relative Pain Scores Per Patient Pre and Post RFC.

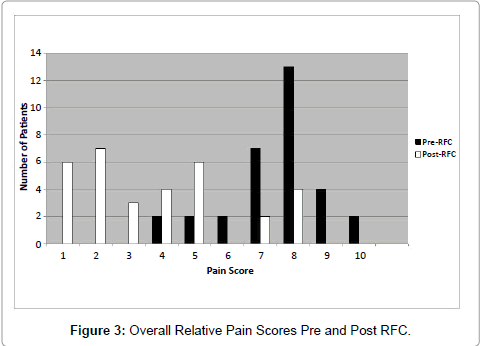

Figure 3: Overall Relative Pain Scores Pre and Post RFC.

84% (n=27) of patients reported significant persistent improvement in pain of at least 2 out of 10 (Figure 4), correlating to at least a 20% persistent reduction in pain per patient (Figure 5); p=0.000003 (Wilcoxon signed rank test).

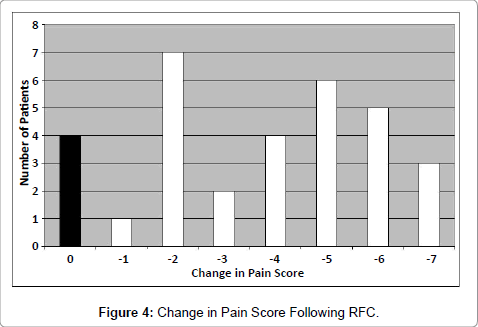

Figure 4: Change in Pain Score Following RFC.

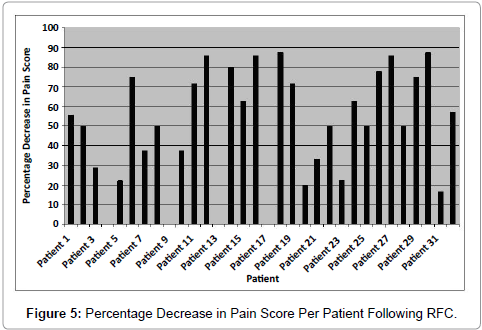

Figure 5: Percentage Decrease in Pain Score Per Patient Following RFC.

Mean reduction in pain in all patients following RFC was by 51% (95% CI 41% to 61%), p<0.001 (Figure 6).

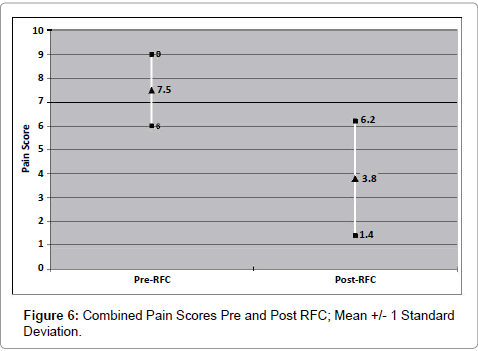

Figure 6: Combined Pain Scores Pre and Post RFC; Mean +/- 1 Standard Deviation.

Pain in relation to cause, location and grade of lesion

31% (n=10) of patients suffered knee pain following a defined precipitating event to their knee, suggesting chondral damage secondary to trauma. 69% (n=22) of patients suffered knee pain without a defined precipitating event, suggesting chondral damage of a degenerative nature. There was no significant correlation between the cause of the lesion and pre-operative pain or pain relief achieved following RFC.

28% (n=9) of patients suffered chondral defects upon their patella in isolation. A further 50% (n=16) of patients suffered chondral defects on their patella in combination with other sites. Therefore in total 78% (n=25) of patients suffered defects upon the articular surface of their patella.

16% (n=5) of patients suffered chondral defects on their medial femoral condyle in isolation. A further 31% (n=10) of patients suffered chondral defects on their medial femoral condyle in combination with other sites. Therefore in total 47% (n=15) of patients suffered chondral defects upon their medial femoral condyle.

4 patients suffered one grade II-III lesion in the presence if one grade IV lesion. The remaining 28 patients suffered one to two grade II-III lesions.

The distribution and grade of lesions relative to the change in pain following RFC are summarised in Table 1. There was no significant correlation between location or grade of lesion and reduction in pain following RFC.

Site of 1st lesion Grade of 1st lesion Site of concurrent 2nd lesion Grade of 2nd lesion No. of patients Mean change in pain
1 2 3 4 1 2 3 4
Patella X       Med. tibial plateau   X     1 0%
  X         3 30%
  X     Trochlea   X     1 75%
  X           X 1 71%
  X     Med. femoral condyle   X     4 77%
  X         X   2 39%
    X       6 47%
    X   Trochlea     X   1 33%
    X         X 1 86%
    X   Med. femoral condyle   X     2 36%
    X       X   1 86%
    X         X 1 75%
      X Trochlea   X     1 50%
Med. femoral condyle     X       5 46%
Lat. tibial plateau     X       1 0%
Trochlea     X   Lat. femoral condyle     X   1 57%

Table 1: Site and ascending grade of chondral lesion relative to change in pain post RFC.

Duration of symptom relief

• Median time to follow-up post RFC was 11 months (range 3 to 39 months)

At the time of study:

• 91% (n=29) of patients were still experiencing improvement to their symptoms (one greater than those who were experiencing improvement purely to their pain).

• 81% (n=26) of patients were still experiencing maximal improvement to their symptoms (Figure 7).

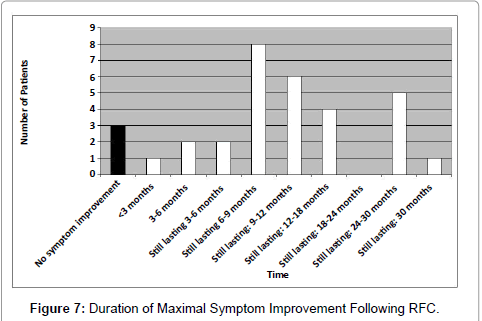

Figure 7: Duration of Maximal Symptom Improvement Following RFC.

• 9% (n=3) of patients were still experiencing some symptom relief, but had noticed a deterioration to their maximal symptom improvement. This deterioration occurred within 6 months of undergoing RFC.

• 9% (n=3) of patients had experienced no improvement to symptoms.

• Median maximal improvement in symptoms occurred 1-2 months after RFC (Figure 8).

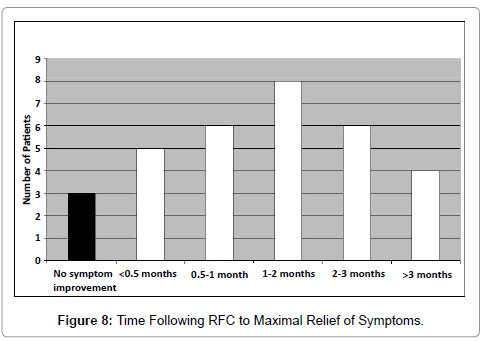

Figure 8: Time Following RFC to Maximal Relief of Symptoms.

When one excludes the 2 patients who’s time to study follow-up was less than 6 months, 90% (n=27) of patients were still experiencing some (if not maximal) symptom relief at least 6 months following their arthroscopy, median of 13.5 months (Figure 9).

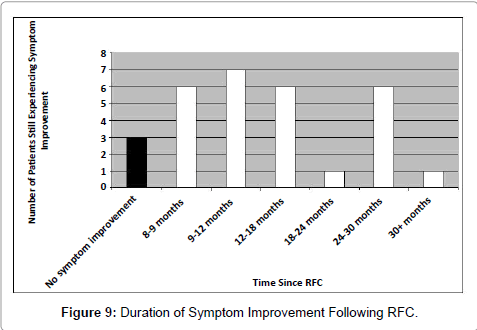

Figure 9: Duration of Symptom Improvement Following RFC.

Activity levels

Only 47% (n=15) of patients completed pre and post RFC Cincinnati sports activity scales (Figure 10). There was no significant overall change to activity pre and post RFC. Mean pre RFC score was 6.9 (95% CI 5.2 to 8.6) mean post RFC score was 6.7 (95% CI 5.5 to 7.9) with a mean change of -0.2 (2.5 to -2.9), p=0.67.

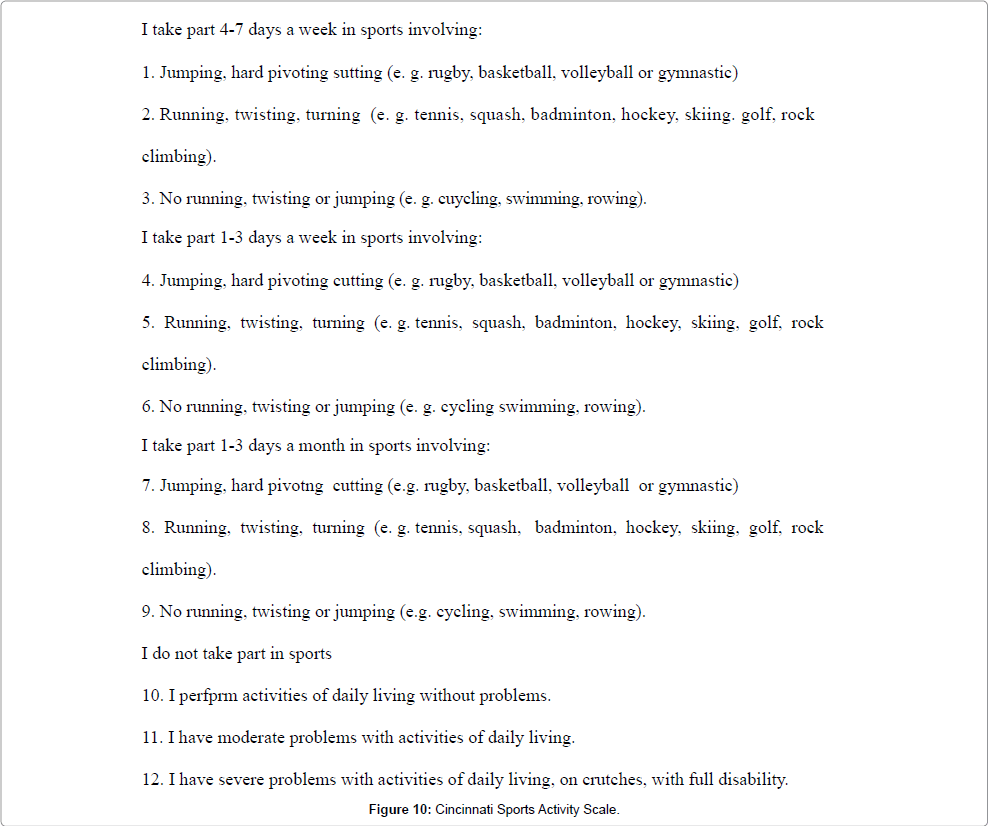

Figure 10: Cincinnati Sports Activity Scale.

Satisfaction with treatment

50% (n=16) of patients were satisfied and 34% (n=11) were very satisfied with the outcome of their operation. 16% (n=5) were not satisfied. Satisfaction correlated directly to percentage reduction in pain with 60% (n=3) of patients unsatisfied with the procedure experiencing no pain relief following RFC.


A limited number of recent studies have purported the short term benefit of RFC in conjunction with other treatments. Spahn et al. [1] conducted a prospective study in 2008 examining medial femoral condyle chondroplasty in conjunction with medial meniscectomy. This demonstrated improved pain, function and quality of life scores of up to a year when RFC was utilised. A randomised prospective study by Barber et al. [4] in 2006 demonstrated significantly improved pain and outcome scores in patients 19months post either mechanical chondroplasty, or mechanical chondroplasty combined with RFC, but with no significant difference in outcomes between the two. One study by Owens et al. [11] in 2002 compared RFC directly to mechanical chondroplasty. This demonstrated improved outcomes at one and two years in the RFC treatment group, yet was restricted to the treatment of grade 2-3 chondral lesions of the patella in female patients.

Concerns have existed regarding the potential long term side effects of RFC, most notably localised AVN of the articular cartilage from exposure to high local temperatures. Chu et al. [6] and Voss et al. [8] demonstrated chondrocyte death from protracted or repeated exposures to temperature exceeding 50°C. This is not thought to be representative of arthroscopic RFC however due to the short time period of exposure to the probe and the use of irrigated saline. Limited clinical data exists to exclude AVN as a long term risk following RFC, however Barber and Iwasko [4] demonstrated no clinical or radiological evidence of AVN at one year. Likewise, no published clinical data exists to demonstrate the long-term clinical benefits of RFC and whether pain relief is sustained and further surgical intervention prevented or delayed. Voloshin et al. [8] demonstrated at least partial filling of chondral lesions in over 50% of patients up to 30 months following RFC however the underlying reason behind this is unknown as is long term patient clinical outcome.

Our study showed a statistically significant reduction in pain following RFC, with a mean reduction in pain of 51% (p<0.001).

Our study suggests that maximal pain relief following RFC can take a few months (median=1-2) to develop. Those patients who do experience pain relief experience it for greater than 6 months (all patients who experienced pain relief were still gaining benefit at the time of the study, median time from operation to study=13.5 months). This concurs with the work of Spahn et al. [1] and Owens et al. [11] demonstrating significant short-term clinical benefit from RFC.

Strict inclusion criteria ensured that our study assessed purely the outcome of RFC on isolated chondral lesions, without the confounding factors of additional articular, meniscal or ligament pathology or additional treatment modalities [12]. This severely limited the population size of the study, reducing inclusion numbers from 3174 total knee arthroscopies and 218 arthroscopies involving chondroplasty completed over 3 years, to 36 patients who matched the criteria. However this strengthened the relevance of the clinical result, ensuring that clinical outcome correlated directly to the effects of RFC. Despite the strict inclusion criteria, patient numbers were still of sufficient magnitude to demonstrate statistical significance.

Our study demonstrated no significant correlation between the cause, site or grade of chondral defect and pain relief following RFC.

Assessment of patient activity levels via the Cincinnati sports activity scale was limited due to low patient participation. Cincinnati scoring demonstrated no significant change to activity levels pre and post RFC. Despite the lack of significance, this suggests that the improvement to pain scores achieved following RFC was not a consequence of decreased patient activity.

The study was conducted retrospectively and thus the time following surgery to data collection was variable (median 11 months, range 4-33 months) with no control (such as arthroscopic washout alone) used for comparison. The retrospective nature of the study precluded the use of standardised pre-operative patient scoring by means such as KOOS. The focus of the study however was on pain relief following RFC, rather than overall multi-factorial return to function 2 patients were excluded due to receiving additional artificial synovial fluid injections to their knee post RFC. This would suggest that an additional 2 patient’s received no or minimal symptom relief following RFC. This would not however affect the statistical significance of the improvement in pain score pre and post RFC (p<0.001).

Our study supports current literature and suggests short term pain relief following the use of RFC on chondral lesions in the knee. Due to its strict inclusion criteria it adds to current literature by suggesting pain relief purely following the effects of RFC on grade II-III lesions, excluding all other knee pathology and treatments. No current literature exists demonstrating long term clinical outcomes; therefore extending the study would aid knowledge in this field.
