Motion Analysis of the Patella in Asymptomatic Patellofemoral Joints by Transparent 3D Imaging

Masashi Mastuzaki* and Norio Sekine
Department of Radiological Science, Graduate School of Human Health Sciences, Tokyo Metropolitan University, Tokyo, Japan
*Corresponding Author: Masashi Mastuzaki, Department of Radiological Science, Graduate School of Human Health Sciences, Tokyo Metropolitan University, Tokyo, Japan, Tel: 81-3-3815-1400, Fax: +81-3-3815-1408 Email:

Abstract

Transparent 3D images was used to analyze the motion of the patella in knee extension movements at the patellofemoral joint in asymptomatic persons aged 40 and over who are at increased risk of osteoarthritis of the knee.
By adding transparency to 3D images constructed by extracting the femoral condyle cartilage and patella from 3D data using MRI scans at knee flexion angles of 120°, 90° and 60°, the patella movement analysis images allow the position of the patella to be accurately ascertained through the joint cartilage. This made it possible to analyze the rotation and inclination of the patella when the patella is moved by the femoral trochlear during knee extension movements.
There was a correlation between patella rotation and patella inclination when the knee is extended. 3D motion analysis of the patella at the patellofemoral joint was performed by complex computer analysis according to conventional methods. Transparent 3D imaging facilitates the use of bony landmarks to analyze the motion of the patella. This method is thought to be useful in preventive medicine by enabling early prognostic prediction by performing motion analysis of the patella with respect to deformation of the patellofemoral joint.

Keywords: Patellofemoral joint; Transparent 3D imaging; Femoral trochlear; Patella motion

Introduction

Osteoarthritis of the knee is thought to be an irreversible progressive condition. Although people at risk of developing this condition are known to include the elderly, women, people with obesity, people with a history of knee injury, and people with a knee varus deformity, the underlying causes are still unknown [1-3]. Onset typically occurs after reaching 40 years of age, and it is clear that the prevalence increases sharply in people aged 50 and above [4-6]. The sites of cartilage degeneration in osteoarthritis of the knee are classified as medial condyle, lateral condyle and patellofemoral, with the latter occurring in 34% of females over the age of 60 according to the findings of X-ray observations [7]. Also, degeneration of the patellofemoral joint was found in 79% of cadavers aged 65 and over, showing that degeneration of the patellofemoral joint is very common [7]. Even at the early stages, MRI scans can reveal degeneration of cartilage in the trochlear groove inside the patellofemoral joint [8].

Most studies of patellofemoral joint disorders have analyzed the movement of the patella by means of simple X-ray, CT and MRI scans [9-18], but have mostly involved evaluations based on axial views, making it difficult to perform accurate patella motion analysis. Therefore, studies using cadavers are being performed in order to accurately analyze the movement of the patella [19-22]. However, these studies are also limited because cadavers do not move in the same way as living subjects. Recently, it has become possible to perform accurate evaluations of living subjects by means of computerized 3D motion analysis [23-25], but so far this method has mostly been used to analyze patella motion in patients with patellofemoral joint disorders having dislocated patellas, and few analyzed the motion of the patella in patients with osteoarthritis [26]. Furthermore, there have been no patella motion analysis studies of patients in the early stages of osteoarthritis of the knee. The aim of the present study was to examine the factors behind the early stages of osteoarthritis of the knee by using a new 3D imaging method to perform a motion analysis of the patella at the patellofemoral joint in asymptomatic subjects aged 40 and above, who are considered to be at risk of developing osteoarthritis of the knee.

Methods

The proposed technique was used to examine 13 knees of 13 asymptomatic volunteers (1 male, 12 female) from 44 to 58 years of age (average 50.6), who had all given their informed consent. The test subjects had no history of knee pain or trauma.

3DMR imaging was performed using a 3-Tesla MR system (Intera Achieva 3.0 T Quasar Dual gradient R2.6; Philips, Best, The Netherlands) with a flex coil (Flex S_2 channel Phased Alley Coil; Philips, Best, The Netherlands) to obtain images at knee flexion angles of 120°, 90° and 60°. The limbs were examined in the lateral decubitus position, with care taken to ensure that the rotation of the tibia was not affected by the motion of the patella [20-22]. The MR scans were obtained by 3D WATS with a 15° flip angle, TR=20 ms, slice thickness=1.5 mm, and FOV=150 mm × 150 mm.

The 3D images were constructed using Mimics Research 19.0 and 3- matic Research 11.0 software (Materialise NV, Leuven, Belgium). The 3D images were constructed by extracting the femoral condyle cartilage and patella semi-automatically from 3D MR imaging data (Figure 1).

arthritis-condyle-cartilage

Figure 1: 3D image of the structure of the femoral condyle cartilage and patella.

Motion analysis of the patella in the patellofemoral joint was performed with regard to the movement, rotation and inclination of the patella in the femoral trochlear during knee extension. During movement of the patella, the positional relationship between the femoral trochlear area and patella was analyzed based on 3D images obtained with a 3-matic Research 11.0. First, the overall area of the femoral trochlear (trochlear total area; TTA) was determined by hiding the display of the patella from the 3D image (Figure 2A), and the patella was then displayed to determine the amount of the femoral trochlear not covered by the patella (trochlear show area; TSA) (Figure 2B). The TSA was divided by the TTA to yield the trochlear show area ratio (TSAR) and the TSAR angle at each knee flexion angle:

arthritis-trochlear-area

Figure 2: Femoral trochlear area ratio (TSAR90) analysis images. A. Total area of femoral trochlear (TTA90). B. Femoral trochlear display area (TSA90).

TSAR=TSA/TTA × 100

The mobility of the patella at different angles of knee flexion was obtained from the following formula:

Patella mobility between 120° and 90° TSAR (120–90) = TSAR120– TSAR90

Patella mobility between 90° and 60° TSAR (90–60) = TSAR90– TSAR60

Using Mimics Research 19.0 software, the patella rotation angle was analyzed based on the femoral trochlear groove and the middle ridge of the patella in the 3D image. First, the viewpoint of the 3D image was aligned with a position from the back of the femoral condyle cartilage (Figure 3A).

To apply the new 3D imaging technique, the transparency was altered so that the joint cartilage and patella appeared transparent, and then the femoral trochlear groove line and patella middle ridge line were moved so as to align them vertically with the femoral trochlear groove line. The resulting view was imported as a JPEG image (Figure 3B).

arthritis-Patella-rotation

Figure 3: Patella rotation angle (PRA90) analysis image. A. Rear view of femoral condylar articular cartilage (transparency: 0) and patella (transparency: 0). B. Rear view of femoral condylar articular cartilage (transparency: high) and patella (transparency: medium).

By increasing the transparency of the femoral trochlea and reducing the transparency of the patella, it is possible to clarify the positional relationship between the femoral trochlea and the patella (which is situated at a deeper position). This makes it possible to analyze the movement of the patella on the femoral trochlea simply by using the characteristic bony landmarks of the femoral trochlea and patella.

Using ImageJ software (National Institutes of Health, Bethesda, MD), this image was analyzed to determine the angle of intersection between the femoral trochlear groove line and patella middle ridge line (patella rotation angle; PRA). The change of patella rotation angle with knee flexion angle is obtained from the following formula:

Patella rotation angle between 120° and 90° PRA (120– 90)=PRA120–PRA90

Patella rotation angle between 90° and 60° PRA (90–60)=PRA90– PRA60

The patella inclination angle is obtained using the patella tilt angle (PTA) and lateral facet angle (LFA) from the sky-line view used for evaluation by simple X-rays used to construct the 3D image [27,28]. The transparency was set so that the patella appears transparent, and the position was set so that the top and bottom ends of the line through the patella middle ridge were superimposed (Figure 4A). Lines were drawn between the bottom of the femoral medial condyle and the bottom of the lateral femoral condyle, and across the maximum lateral diameter of the patella, and the result was captured as a JPEG image (Figure 4B). This image was analyzed using ImageJ to find the angle of intersection between the two lines (PTA). The variation of PTA with the knee flexion angle was obtained from the following formula:

Patella tilt angle between 120° and 90° PTA (120–90)=PTA120– PTA90

Patella tilt angle between 90° and 60° PTA (90–60)=PTA90–PTA60

For the LFA, lines were drawn between the top of the femoral medial condyle and the top of the femoral lateral condyle, and across the lateral surface of the patella, and the result was captured as a JPEG image (Figure 4C). This image was analyzed using ImageJ to find the angle of intersection between the two lines (LFA). The variation of LFA with the knee flexion angle was obtained from the following formula:

arthritis-Patella-inclination

Figure 4: Patella inclination angle analysis image (90° knee flexion). A. Sky line view 90 setting position. B. PTA (90). C. LFA (90).

Patella lateral facet angle between 120° and 90° LFA (120– 90)=LFA120–LFA90

Patella lateral facet angle between 90° and 60° LFA (90–60)=LFA90– LFA60

The patella motion was analyzed based on the relationships of PRA, PTA and LFA to the change in patella movement (TSAR) at different knee flexion angles while extending the knee.

When the knee was flexion at an angle of 60°, the sulcus angle was recorded as the angle between the lateral and medial surfaces of the femoral trochlear groove (Figure 5).

arthritis-Sulcus-angle

Figure 5: Sulcus angle analysis image.

Results

Analysis of test subjects

The age, gender, height, weight and sulcus angle of each of the thirteen test subjects are shown in Table 1. None of the test subjects were excessively overweight. Furthermore, since all the test subjects had sulcus angles within the normal range, none of them had dysplasia of the patellofemoral joint [9,29,30].

Patients Age (yrs) Gender Height (cm) Weight (kg) Sulcus angle (°)
1 55 F 153 56 144
2 47 F 164 55 147
3 55 F 150 48 143
4 55 M 170 69 140
5 53 F 154 51 144
6 49 F 155 55 147
7 47 F 165 54 143
8 50 F 150 45 136
9 50 F 158 52 146
10 46 F 160 50 142
11 49 F 159 57 146
12 44 F 173 75 140
13 58 F 155 61 142
Mean 50.6   158.9 56 143.1

Table 1: Clinical detail of the volunteers.

Patella motion analysis

1. TSRA and PRA in knee extension actions. The correlation between the patella mobility and patella rotation with respect to changes in the knee flexion angle when extending from 120° to 90° and from 90° to 60° was r=–0.77, P=0.002 between 120° and 90°, and r=–0.76, P=0.002 between 90° and 60°, indicating a strong negative relationship (Figures 6A and 6B).

arthritis-Knee-flexion

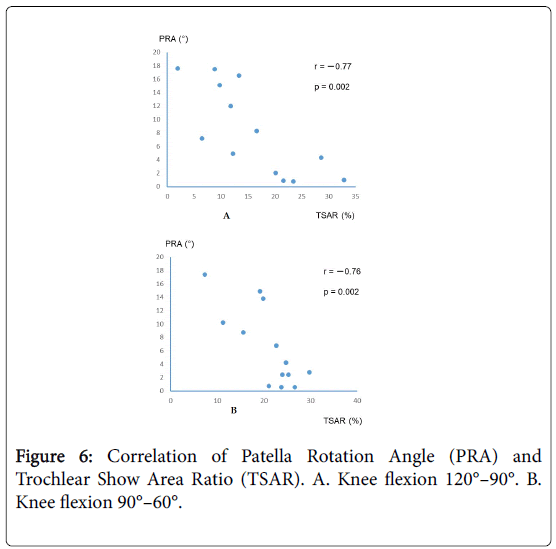

Figure 6: Correlation of Patella Rotation Angle (PRA) and Trochlear Show Area Ratio (TSAR). A. Knee flexion 120°–90°. B. Knee flexion 90°–60°.

2. TSRA and PTA in knee extension actions. The correlation between the patella mobility and patella PTA with respect to changes in the knee flexion angle when extending from 120° to 90° and from 90° to 60° was r=0.77, P=0.002 between 120° and 90°, and r=0.72, P=0.005 between 90° and 60°, indicating a strong positive relationship (Figures 7A-7C).

arthritis-Tilt-Angle

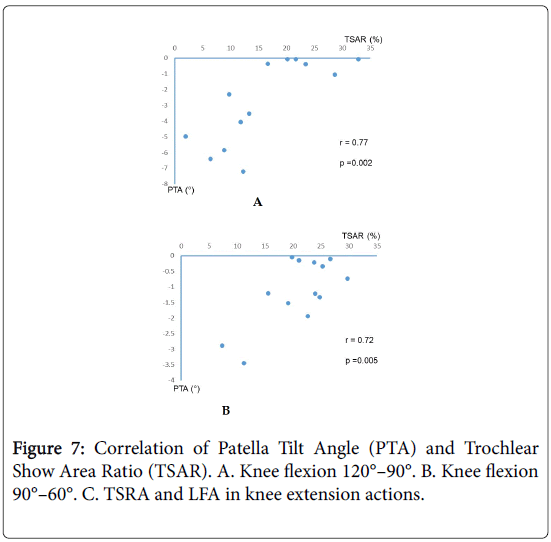

Figure 7: Correlation of Patella Tilt Angle (PTA) and Trochlear Show Area Ratio (TSAR). A. Knee flexion 120°–90°. B. Knee flexion 90°–60°. C. TSRA and LFA in knee extension actions.

The correlation between the patella mobility and patella LFA with respect to changes in the knee flexion angle when extending from 120° to 90° and from 90° to 60° was r=–0.83, P<0.001 between 120° and 90°, indicating a strong negative relationship, and r =–0.57, P=0.03 between 90° and 60°, indicating a weak negative relationship (Figures 8A and 8B).

arthritis-Lateral-Facet

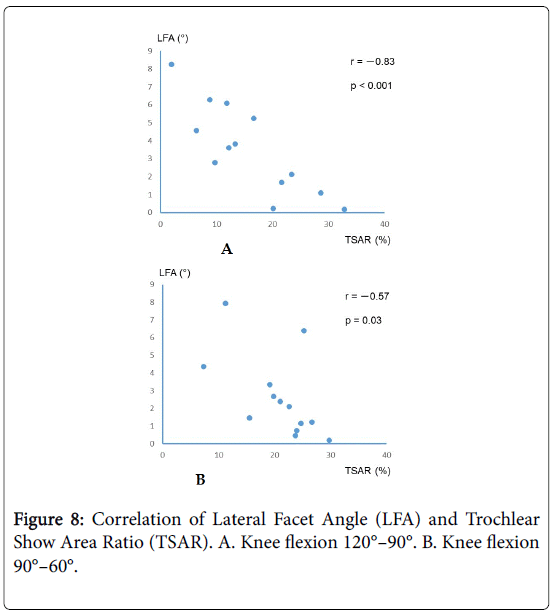

Figure 8: Correlation of Lateral Facet Angle (LFA) and Trochlear Show Area Ratio (TSAR). A. Knee flexion 120°–90°. B. Knee flexion 90°–60°.

Discussion

The new transparent 3D imaging method used in this study facilitates the evaluation of 3D patella movements at the patellofemoral joint, which has not been done before. This makes it easy to use 3D computer analysis algorithms to determine the shape of the patella and the patellofemoral joint in transparent 3D images showing the rotation and inclination of the patella in three dimensions [25]. Furthermore, with the method used in this study, MRI scans of the femoral condyle cartilage and patella can be used to perform accurate assessments of patella movement, which would hitherto have been performed by evaluation methods based on X-ray images and/or CT scans [31].

The patellofemoral joint showed a tendency for increased rotation and less inclination of the patella as the mobility of the patella at the femoral trochlear becomes smaller during knee extension actions. On the other hand, there was a weak correlation with LFA during knee extension movements from 90° to 60°. This is thought to be attributable to the thickness of the patella cartilage. The adaptation of the patellofemoral joint starts from the 90° knee flexion position at the articulating surfaces [32]. Up to 90°, a degree of freedom arises due to the thickness of the patella cartilage in the matching state where the articulating surfaces are the patella and the femoral trochlear groove (LFA90–60), and is considered to have a weak correlation. LFA120–90 shows a strong correlation with the movement of the patella, which is thought to be because with a larger knee flexion angle, the patella and femoral trochlear groove are matched together as a patellofemoral joint.

This analysis of patella motion in asymptomatic patellofemoral joints showed a significant correlation between the movement of the patella and the rotation and inclination of the patella when extending the knee joint. This is thought to reflect the function of the quadriceps muscle during knee extension. It has been reported that the functioning of the quadriceps muscle contributes to a high patella position and degeneration of the patellofemoral joint [33]. Also, according to a report by Felicio et al., the patella reflects the function of the quadriceps femoris muscle, and the contraction of the quadriceps muscle and PTA are closely related [34]. Osteoarthritis of the knee is closely related to the function of the quadriceps muscle, and the finding of the present study suggests that the patella's movement, inclination and rotation reflect the latent function of the quadriceps muscle.

Based on the results of this study, the small amount of movement by the patella means that the patella rotates and its inclination decreases. In other words, the patella continues to press against the inner side of the femoral trochlear groove. Studies performed using cadavers have reported that in people with osteoarthritis of the knee, the patellofemoral joint cause’s strong degeneration of cartilage in the femoral trochlear groove [35-39]. Although the patellofemoral joint is not intrinsically weight-bearing, it is said that a large pressure (up to five times the body weight) is applied to the joint surface during knee flexion and extension movements, especially when walking up and down stairs [40,41]. Our research suggests that one of the causative factors in the early stages of osteoarthritis of the knee is the deterioration of patella movement with declining function of the quadriceps femoris muscle, bringing the patella into stronger contact with the femoral condyle cartilage of trochlear and leading to the onset of degeneration during everyday activities.

In this study, since e the latent function of the quadriceps femoris muscle was evaluated statically, it was not possible to evaluate dynamic movements during extension and flexion, or dynamic changes in the load on the patella. High-resolution MRI scans are limited in terms of their ability to perform evaluations in conjunction with the movement of joints. On the other hand, ultrasonography has become widely used in the study of musculoskeletal disorders due to its ability to produce high-resolution scans of superficial regions [42]. According to Imai et al. the medial patellar retinaculum makes a large contribution to movement of the patella during extension and flexion of the knee [43]. In anatomical studies of cadavers, the medial patellar femoral ligament, which is a constituent of the medial patellar retinaculum, could be visualized by ultrasonography [44]. It is expected that the degeneration of patellofemoral joints could be evaluated by using ultrasonography to assess the rotation and inclination of the patella while dynamically observing the tone of the medial patellar femoral ligament. Using ultrasonography, it should be possible to analyze the movement of the patella by performing dynamic evaluations in real time with high resolution.

Conclusion

In summary, a study of the early stages of degeneration of patellofemoral joints in asymptomatic subjects has been performed by using transparent 3D images to analyze the motion of the patella. This should result in improved preventive medicine by making it easier to detect risk factors and impede the progress of osteoarthritis.

Ethical Statements

All procedures followed were in accordance with the ethical standards of the responsible committee on human experimentation (institutional and national) and with the Helsinki Declaration of 1964 and later versions. Informed consent was obtained from all patients for being included in the study.

Conflict of Interest

The authors declare that there is no conflict of interest.
