Distribution of TRPV1 in CSF Contacting Nucleus of Rat Brain Pare

Journal of Neurology & Neurophysiology

ISSN - 2155-9562

Research Article - (2011) Volume 2, Issue 3

Distribution of TRPV1 in CSF Contacting Nucleus of Rat Brain Parenchyma and its expression in Neuropathic Pain

Chun- Xu1, Zi-jun Zhao1, Ting-ting Wu1 and Li-cai Zhang2*
1Graduate student, Jiangsu Province Key Laboratory of Anesthesiology, Xuzhou Medical College, Xuzhou, China
2Professor, Jiangsu Province Key Laboratory of Anesthesiology, Xuzhou Medical College, Xuzhou, China
*Corresponding Author: Dr. Li-cai Zhang, Jiangsu Province Key Laboratory of Anesthesiology, Xuzhou Medical College, Xuzhou 221002, PR China, Tel: 86- 516-85748431, Fax: 86-516-85748431 Email:


Background: The cerebrospinal fluid-contacting nucleus (CSF-CN), distributes and localizes in the ventral periaqueductal central gray (PAG) of the brainstem, which may influence actual composition of the cerebrospinal fluid (CSF) for non-synaptic signal transmission via releasing or absorbing bioactive substance. TRPV1 has been found in both the peripheral and spinal within centres known for their role in pain detection, transmission and regulation, consistent with its role in pain. Therefore, it is speculated that the CSF-CN participate in pain modulation via the receptor TRPV1. The present study aimed to observe the TRPV1 expression and distribution in the CSF-CN of rat brain parenchyma, and to explore the effects of TRPV1 on the CSF-CN in neuropathic pain.

Methods: The model of neuropathic pain with chronic constriction injury (CCI) of the sciatic nerve was made in Spague-Dawley rats. The thermal withdrawal latency (TWL) and mechanical withdrawal threshold (MWT) were measured. The cholera toxin subunit B conjugated with horseradish peroxidase (CB-HRP) as a tracer was injected into one of the rats’ lateral ventricles (LV) to explore CSF-CN. The distribution and expression of TRPV1 were observed in the CSF-CN with double labeling of CB-HRP and TRPV1 with immunhistochemistry. A selective TRPV1 antagonist, SB-366791, was injected into one of the rat’s LV at the day of peak raise of allodynia and hyperalgesia (10 days after CCI surgery) in 5μg. The behavioral of rat were observed at 2h before and 0.5,1, 2, 4, and 8h after administration.

Results: The CSF-CN is always located in a special region in rat brain parenchyma which is well consistent with the previous finding and found that most cells of CSF-CN have TRPV1. TRPV1 expression levels were significantly increased in the CB-HRP positive neurons at 10 days following CCI surgery. After intracerebroventricular administration of SB366791, mechanical allodynia and thermal hyperalgesia were attenuated at 5μg over a time period of approximately 4 hours, especially at 2h following administration.

Conclusions: TRPV1 is localized within the CSF-CN of the mesencephalon and its expression was increased in CSF-CN by CCI surgery. Comparative analgesic effects of a TRPV1 anatagonist in a CCI model of neuropathic pain lend support to the validation of TRPV1 in CSF-CN as a promising target for the treatment of neuropathic pain.

Keywords: dCSF-CNs; CSF-CN; TRPV1; SB366791; Neuropathic pain


CB-HRP: Cholera toxin B conjugated to Horseradish Peroxidase; CSF-CNs: Cerebrospinal Fluid-Contacting Neurons; dCSF-CNs: distal CSF-CNs; CSF-CN: Cerebral Spinal Fluid-Contacting Nucleus; ICV: Intracerebroventricular; LV: Lateral Ventricle; TRP: Transient Receptor Potential


The TRPV1 channel, previously known as vanilloid receptor VR1, was cloned 10 years ago and is a calcium-permeable nonselective cation channel [1,2] that respond to mechanical, thermal, chemical (i.e. acid, lipids) and many other stimuli coming from the extra and intracellular milieu [3-7]. It is expressed predominantly in nociceptors that participate in the transduction of noxious chemical and thermal stimuli in the peripheral nervous system (PNS). Bipolar neurons with unmyelinated axons (C fibers) and somata in dorsal root and trigeminal ganglia, as well as a subset of sensory neurons with thin myelinated axons (Aδ fibers), are capsaicin sensitive [8]. Currently, TRPV1 receptors are a novel therapeutic target in the PNS, and agonists and antagonists are being tested for the treatment of inflammatory and chronic neuropathic pain [9,10,11]. However, in neuropathic pain, in contrast to the well-established function of TRPV1 receptors in inflammatory pain, their roles are not well defined, especially in the central nervous system (CNS).

Recent studies have also shown that TRPV1 receptors are located in several regions of the CNS including hypothalamus, midbrain PAG, substantia nigra, and locus coeruleus [12,13,14]. Although there is evidence that TRPV1 receptors in the CNS are involved in pain transmission or modulation and might serve as useful drug targets [14- 16], there is still existing controversial about their roles in the CNS. Activation of TRPV1 receptors induces hypoalgesia by increasing glutamate release in substantia nigra, locus coeruleus, hypothalamus and PAG [17-19]. However, centrally penetrating TRPV1 receptor antagonists proved more effective compared to peripheral restricted agents with the same pharmacokinetic and pharmacological profile [20], underlining an involvement of central TRPV1 receptor blockade in the analgesic action. Nonetheless, the fuctional significance of TRPV1 receptor expression in the brain remains elusive.

Cerebrospinal fluid-contacting neurons (CSF-CNs) forms a part of the circumventricular organs of the CNS. Represented by different cytologic types and located in different regions, they constitute a CSFcontacting neuronal system. According to cytologic positions, they can be divided into three types: an intraependyma neuron which projects into the ventricle lumen and the central canal of the spinal cord, a supraependyma cell which is subjacent to the ependyma and a distal CSF contacting neuron [21,22]. The distal cerebrospinal fluid-contacting neurons (dCSF-CNs) are the peculiar type of neurons whose bodies are in the parenchyma of the brain and processes extend into CSF in the cavity of the ventricle in the CNS. Up to present, these structures and functions have been seldom investigated [23]. Zhang et al found that cholera toxin subunit B labeled with horseradish peroxidase (CB-HRP) was a dependable tracer for CSF-CNs [22]. After injecting CB-HRP into lateral ventricle (LV), it was found that a distinct outline labeled by CB-HRP was formed in the ependymal surfaces of the ventricular system from LV, the intraventricular foramen, the third ventricle (3V), the midbrain aqueduct (Aq), fourth ventricle (4V) to the central canal (CC) and on the pial surfaces of the brain and spinal cord. Our previous studies indicated that dCSF-CNs may participate in transduction and regulation of pain signals through many neurotransmitters [22,23]. TRPV1 function is related to the process of analgesia for neuropathic pain; however, whether the specific pain signal receptor TRPV1 exists in dCSF-CNs remains unknown and the role of supraspinal TRPV1 receptors in controlling pain appears elusive. In the paresent paper we report that the first description and preliminary results of TRPV1 expressed on dCSF-CNs and TRPV1 channel expressed on dCSF-CNs activation is a novel cellular element required for neuropathic pain.


Animal experiments

Male Sprague-Dawley rats (250±50g) for experiments were obtained from the experimental animal center, Xuzhou Medical College. The number of the license is: SYXK (Jiangsu) 2002-0038, Grade SPF. Rats were maintained in climate and light-controlled (23±1°C, 12/12h dark/ light cycle with light on at 08:00h) for at least one week prior to the experiments.Efforts were made to minimize animal suffering and to reduce the number of animals used. Rats were used once only. All experiments were conducted in accordance with the guidelines of the International Associaiton for the Study of Pain (IASP) and approved by the Committee for the Ethical Use of Laboratory Animals, Xuzhou Medical College.

Drug preparation

SB366791 (Enzo Life Sciences, San Diego, CA, USA) was dissolved in 100% dimethyl sulphoxide (DMSO) and diluted in physiological saline. The final DMSO concentration was 10%.

Chronic Constriction Injury (CCI)

The CCI was made according to the method described by Bennett and Xie (1998). Briefly, animals were anaesthetized with 10% chloral hydrate (300 mg/kg, i.p.), and the left common sciatic nerve was exposed at the level of the middle of the thigh by blunt dissection through biceps femoris. Proximal to the sciatic’s trifurcation, about 7mm of nerve was freed of adhering tissue and 4 ligatures were loosely tied around the nerve by using 4-0 braided silk thread (Ethicon Inc.,Brussels, Belgium) with 1 mm space. The incision was closed in layers. Sham operation was performed in the same manner except for sciatic nerve ligation.

Measurement of allodynia and hyperalgesic activity

The rats were habituated to grid bottom cages before the start of the experiment. The allodynia was evaluated by the application of von Frey hairs (VFHs; Semmes-Weinstein Monofilaments, North Coast Medical Inc., San Jose, CA) in ascending order of force (0.16, 0.4, 0.6, 1, 1.4, 2, 4, 6, 8, 10, 15 and 26g) to the plantar surface of the hind paw. Each VFH was applied to the paw for 6s, or until a withdrawal response occurred. Once a withdrawal response was observed, the paw was re-tested, starting with the next desending VFH until no response was noted. The lowest amount of force required to elicit a response was recorded as the withdrawl threshold (PWT) in g. Static allodynia was defined as being present if the rats responded to the 2g VFH or below, which was innocuous to normal or sham-operated rats.

The method of Hargeaves et al. (1988) was used to assess thermal withdrawal latency (TWL) to a thermal nociceptive stimulus. Rats were placed in a Plexiglas enclosure on top of the glass surface of a thermal testing apparatus (BME410A, Institute of Biological Medicine, Academy of Medical Science; China) and allowed to acclimate for 30 min before testing. A mobile radiant heat source (a high-intensity light beam) located under the glass was focused onto the hind paw. The TWL was recorded by a digital timer. Stimulus intensity was kept constant throughout the entire experiment, and was adjusted to give approximately a 10s TWL in the normal or sham operated hind paw. A cutoff time was set at 20s to avoid tissue damage. Rats were acclimated to the procedure until stable TWL values were obtained, and the mean TWL value of the last three measurements was used for analysis. A significant reduction in TWL compared with normal baseline was interpreted as thermal hyperalgesia. Rats not demonstrating hyperalgesia was not further studied (less than 5%).

After recording basal MWT and TWL at 10 days after CCI, SB366791 was administered. SB366791 was intracerebroventricularlly administered at dose of 5μg (in 2μl solution). In the SB366791 study, 10% DMSO (2 μl) was used as a vehicle. To examine the effect of SB366791 on CCI rats, rats received CCI surgery without i.c.v. injecting SB366791 at 10 days as control. The sham group (sham operation) is placed as a reference for the maximum possible effect. Behavioural assessment was performed 0.5, 1, 2, 4 and 8h after drug administration. The observer was blinded to the type of treatment.

Drug injection

Rats were anesthetized with 10% chloral hydrate (300 mg/kg, i.p.) and the head fixed in a stereotaxic instrument (Narishige Scientific Instruments, Tokyo Japan). A 3-μl volume of 30% CB-HRP (Sigma) was injected into one of the rats’ lateral ventricles (LV) according to stereotaxic coordinates (Bregma: -1.2±0.4 mm, Depth: 3.2±0.4 mm, Right of median sagittal plane: 1.4±0.2 mm).

SB366791 specifically against TRPV1 was dissolved in DMSO and was administrated 10 days after CCI by means of unilateral intracerebroventricular (i.c.v.) infusion 2h after recording basal MWT and TWL.

Tissue processing

Forty-eight h following tracer injection, rats were deeply anesthetized again with intraperitoneal 10% chloral hydrate (300 mg/ kg, i.p.) and transcardially perfused with 150 ml of phosphate buffered saline (0.01 M PBS, pH 7.4), followed without interruption by 4% paraformaldehyde in 0.2 M phosphate buffer (300 ml, pH 7.4). The brainstem was removed immediately and post-fixed for 4-6 h at 4°C, then cryoprotected by immersion for 24-48 h in sucrose gradients (5%, 10%, 15%, 20%, and 30%) with 0.01 mol/L PBS at 4°C. The brainstem embedded with OCT, at -20°C and sectioned on a cryostat (Leica CM1900, Germany) at 40 μm in the transverse plane.

Immunofluorescence procedures and confocal microscopy technique

The frozen sections were collected in PBS. Following 3 washes in PBS, sections were incubated in PBS with 0.3% triton X-100 (PBST) for 48-72 h at 4°C with an goat anticholera toxin B-subunit in (1:500; 227040,Merck,Germany) and mouse Anti-TRPV1 (1:500; ab45759, Abcam, Cambridge, UK). After rinsing in PBS, sections were incubated and in donkey anti-goat IgG-conjugated to fluorescein isothiocyanate (1:400; ab6881, Abcam, Cambridge, UK), and in donkey anti-mouse IgG conjugated to Texas Red (1:400; ab7059, Abcam, Cambridge, UK), in the dark for 2 h at room temperature. Absence of immunostaining was also obtained by primary antibody omission (data not shown). Finally, sections were rinsed, mounted, and coverslipped with glycerol containing 2.5% of anti-fading agent DABCO (1,4-di-aza-bi-cyclo- 2,2,2-octane, Sigma, USA) and stored at -20°C in the dark. Tissue sections were examined using laser scanning confocal microscopy (TCS SP2, Leica, Wetzlar, Germany) to identify dCSF-CNs labeled with FITC and TRPV1 labeled with TR.

Image analysis

Software Image-Pro Plus Version 6.0 (Media Cybernetics, Bethesda, USA) was used to count the number of neurons. Four sections with centralized CB-HRP positive neurons were chosen from the same aspect of brain parenchyma in each rat. Under 100× magnification sections 846.8μm×655.3μm in an area were selected to count the number of CB-HRP, TRPV1 and double-labeled CB-HRP/ TRPV1-positive neurons. Computerized image analysis is based on the differences in the integrated optical density (IOD) level between stained and nonstained areas. Data were expressed as mean ± SD.

Statistical analysis

For the time course experiment, we measured the MWT and the TWL 30min before and 1h? 2h? 4h? 8h after the SB366791 administration. Results are expressed as mean±S.D. (n= number of animals). All data were imported to Microsoft Excel 2007 (Microsoft co., Seattle, WA). All statistic tests were undertaken in SPSS v.16.0 (SPSS, Chicago, IL). The data were subjected to a one-way analysis of variance (ANOVA) followed by Tukey’s t-test (or just a t-test where there were only two groups). P<0.05 was considered to indicate statistical significance.


Nociceptive behavioral response

Ligation of the common sciatic nerve produced a clear-cut hyperalgesia in rats submitted to the surgery compared to the sham operated rats (P<0.01) (Figure 1). At 10 days after operation, CCI rats displayed mechanical allodynia and thermal hyperalgesia by the reduction in MWT and TWL to 4.86±1.51g and 9.32±1.11s compared to MWT of 16.98±3.50g and TWL of 16.93±3.11s in sham-operated rats. Intracerebroventricular administration of SB366791 (5μg), but not vehicle, reduced mechanical hyperalgesia and thermal hyperalgesia. Time to reach the maximal antihyperalgesic effect was 2h after i.c.v. administering SB366791 and the effect decayed gradually in about 4h (Figure 2). No changes in behavioral or motor function were observed in either group vehicle or sham.

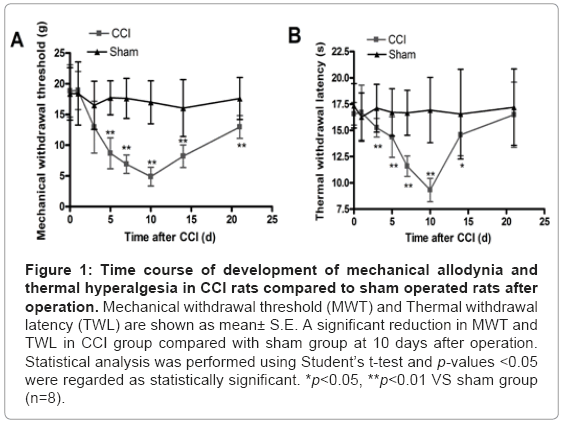

Figure 1: Time course of development of mechanical allodynia and thermal hyperalgesia in CCI rats compared to sham operated rats after operation. Mechanical withdrawal threshold (MWT) and Thermal withdrawal latency (TWL) are shown as mean± S.E. A significant reduction in MWT and TWL in CCI group compared with sham group at 10 days after operation. Statistical analysis was performed using Student’s t-test and p-values <0.05 were regarded as statistically significant. *p<0.05, **p<0.01 VS sham group (n=8).

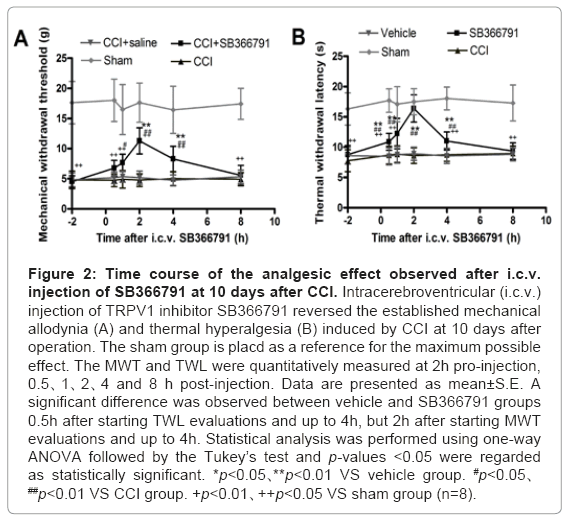

Figure 2: Time course of the analgesic effect observed after i.c.v. injection of SB366791 at 10 days after CCI. Intracerebroventricular (i.c.v.) injection of TRPV1 inhibitor SB366791 reversed the established mechanical allodynia (A) and thermal hyperalgesia (B) induced by CCI at 10 days after operation. The sham group is placd as a reference for the maximum possible effect. The MWT and TWL were quantitatively measured at 2h pro-injection, 0.5、 1、 2、 4 and 8 h post-injection. Data are presented as mean±S.E. A significant difference was observed between vehicle and SB366791 groups 0.5h after starting TWL evaluations and up to 4h, but 2h after starting MWT evaluations and up to 4h. Statistical analysis was performed using one-way ANOVA followed by the Tukey’s test and p-values <0.05 were regarded as statistically significant. *p<0.05、**p<0.01 VS vehicle group. #p<0.05、 ##p<0.01 VS CCI group. +p<0.01、++p<0.05 VS sham group (n=8).

Morphological and immunofluorescence characterization

TRPV1-expression for the CSF-CN: Positive labeling of the CBHRP- traced neurons in the ventral aqueduct region was mainly located in cytoplasm, and the majorities were multipolar and round or oval in shape. The cell bodies of this dCSF-CNs were in the brain parenchyma and the processes extended into CSF. A tissue section, CB-HRP immunoreactivity in green FITC is illustrated in Figure 3A. TRPV1- positive neurons (Tex Red, red) were explained in Figure 3B. CB-HRP/ TRPV1 double-labeled neurons in yellow were shown in Figure 3C. An immunofluorescence analysis demonstrated the localization of TRPV1 in the CSF-CN.


Figure 3: TRPV1-expression in the normal SD rats. A: CB-HRP positive neurons (green). The cell bodies of dCSF-CNs were in the brain parenchyma and the processes were extended into CSF. B: the same section showing TRPV1 positive neurons (red). C: same section showing CB-HRP/TRPV1 double-labeled neurons (arrow, yellow). D-F are showed the enlargement of the rectangle in A-C. Scale bar: 100nm.

Changes of TRPV1-expression in the CSF-CN after CCI: Positive neurons of CB-HRP, TRPV1 and CB-HRP/TRPV1 were existed both in CCI group and control group. The TRPV1-immunoreactive levels were higher in CCI group (Figure 4C) than in control rats (Figure 4A) at 10 days after operation. TRPV1-expressing in CSF-CN was significantly increased at 10 days after CCI. The number of CB-HRP/TRPV1 duallabeled neurons in CCI group were 174±15, significantly higher than control group-111±13, which is positively relevant to the withdrawal behavior signs (P<0.01) (Figure 4E, Table 1).

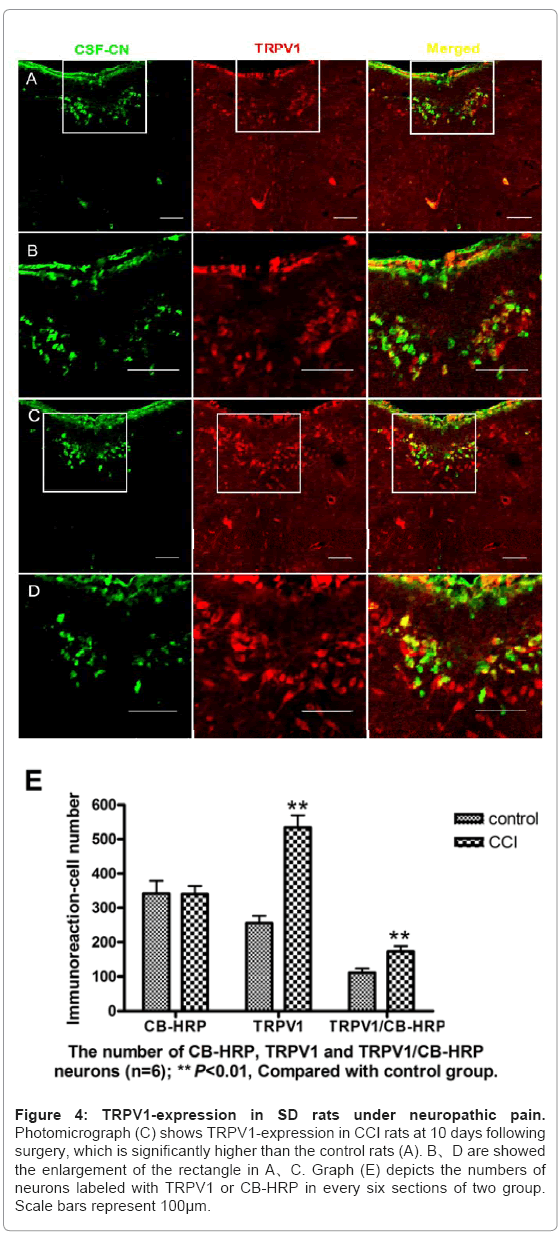

Figure 4: TRPV1-expression in SD rats under neuropathic pain. Photomicrograph (C) shows TRPV1-expression in CCI rats at 10 days following surgery, which is significantly higher than the control rats (A). B、D are showed the enlargement of the rectangle in A、C. Graph (E) depicts the numbers of neurons labeled with TRPV1 or CB-HRP in every six sections of two group. Scale bars represent 100μm.

Group CB-HRP and TRPV1double-labeled(yellow) CB-HRP (green) TRPV1 (red) Double-labeled/
CB-HRP (%)
1 (control) 111 ± 13 341± 38 256±22 32.7±3.2
2 (CCI) 174 ± 15 340 ± 24 534±35 51.5±7.4

All the brain tissue sections counted had CB-HRP/TRPV1 double-labeled neurons

Table 1: The means (Mean ± SD) of positive neurons in six rats with oublelabeling for CSF-injected CB-HRP and for TPRV1.


The dCSF-CNs, whose bodies are in the brain parenchyma and processes extend into CSF in the brain, may play an important role in the signaling, substance transport, functional modulating between the brain and CSF [22]. Both clinical practice and animal experiments indicate that the chemical composition of the CSF can change in pathological or special phsological conditions [21,22,24]. The reasons, origin and receptors for these chemical changes remain unclear. In the first time our study used CB-HRP as a tracer retrograde to display dCSF-CNs clearly, and marked the whole picture of CSF-CN system in rodent’s brain successfully [25]. We found the dCSF-CNs,with their bodies mainly located in the ventral periaqueductal central gray (PAG) of the brainstem, and their processes penetrate the ependymal cells, and stretched into the CSF, were a distinct group from other neurons. After this anatomical characteristic, we named cerebrospinal fluid-contacting nucleus (CSF-CN) [22,25,30]. Our previous electron microscope observation showed that there were both excitatory and inhibitory synapses between non-CSF-CNs and CSF-CN and found that the axon terminals of CSF-CN labeled by CB-HRP extended directly into the cavity of 3V [22]. The connection between CSF-CN and CSF is via non-synaptic signal transmission, with the possibility that substances can be absorbed from the CSF as well as substances secreted into the CSF. In addition, there is the possibility that CSF-CN could sense the pressure of CSF as well as changes in composition of various neurotransmitters and cell factors. Furthermore, CSF-CN can transmit the information to other areas of the brain [31].

Transient receptor potential receptors (TRP) on primary afferent neurons respond to be noxious and/or thermal stimuli. TRPV1 receptor can be activated by noxious heat, acid, capsaicin and resiniferatoxin, leading to burning pain or itch mediated by discharges in C polymodal and A δ mechano-heat nociceptors and in central neurons. The involvement of TRPV1 in inflammatory [32], neuropathic [33], and cancer pain [34] has been reported. This study is the first to our knowledge showing that TRPV1 is expressed in the distal CSFcontacting neurons of mesencephalon ventral to the cerebral aqueduct. This indicates that TRPV1 is expressed in CSF-CN under normal physiological conditions, suggesting that TRPV1 signaling pathways present in CSF-CN and may mediate dCSF-CNs participating in a series of pathological and physiological activities. This finding provides a new starting point to study functions of CSF-CN more deeply.

A rapidly growing body of evidence suggests a functional role for the TRPV channel family in brain fuction [17,26-29]. The CSF-CN connects the CSF and the brain parenchyma, and have a more important function than the subependymal and ependymal CSF-CNs. Our previous studies have demonstrated that the dCSFCNs are closely linked to inflammatory and neuropathic pain, and morphine dependency and withdrawal [23,30]. However, no previous studies have focused on the relationship between CSF-CN and TRPV1 and pain sensation. Therefore, we speculate that the dCSF-CNs participate in pain modulation via the receptor TRPV1. Our immunohistochemical analysis showed the TRPV1 expression levers were significantly increased in the CSF-CN at 10 days after CCI surgery. The up-regulation of the TRPV1 at central nervous system provides morphological evidence that the sensitivity of the vanilloid system is increased in neuropathic pain conditions, therefore making the TRPV1 channel a potential candidate for the future development of novel neuopathic pain relieving agents.

Furthermore, we report that lateral ventricle (LV) administration of SB366791(VR1 specificity antagonist) can produce antihyperalgesic in rats with neuropathic pain, in other words, SB366791 reduced already established mechanical allodynia and themal hyperalgesia 10 days after CCI. These praxiological dates are consistent with the morphological evidence that TRPV1 receptor is up-regulated at the CSF-CN in neuropathic pain condition. The existence of TRPV1 immunoreactivity and analgesia effect induced by an intracerebroventricular (i.c.v.) injection of VR1 antagonist, suggest that the CSF-CN transimit thermal and pain sensation to non-CSF-CNs in the central nervous system neurons via TRPV1 in neuropathic pain.

The mechanism of neuropathic pain is complicated. Previous studies have shown that peripheral nerve injury not only caused the change of synaptic connections in spinal cord, but also caused the change in suparspinal central [35]. There was evidence that TRPV1 receptors were necessary and sufficient for a form of long-term depression at excitatory synapses. TRPV1 mediated LTD may have a role in longterm change in physiological and pathological circuit behavior [36]. The broad distribution of TRPV1 receptors in the brain suggests that these receptors could play a similar role in synaptic plasticity throughout the CNS [37,38]. We speculated that the underline mechanism may be that up-regulation of TRPV1 in CSF-CN alterated function and structure of the CSF-CN causing the development of neuropathic pain, which participated in the mechanical allodynia and the thermal hyperalgesia in CCI rats.

TRPV1 receptor blockers were proven to be analgesics in neuropathic pain conditions in PNS. TRPV1 receptors have been identified in various regions of the brain known for their role in pain transmission or modulation [14-16] such as amygdale, solitary tract nucleus, somatosensory cortex, anterior cingulated cortex and insula [39,40]. VR1 is also expressed in periaqueductal grey (PAG) and rostral ventromedial medulla (RVM) whose activation leads to analgesia [41]. Such an effect is associated with a glutamate increase and the activation of OFF and inhibition of ON cell population in the RVM. Activation of the antinociceptive descending pathway via TRPV1 receptor simulation in the PAG may be a novel strategy for producing analgesia in chronic pain [41]. Conversely, according to the relationship between CSF-CN and ventricular, our data suggest that the blockade of TRPV1 receptors in the CSF-CN could contribute to the analgesia effect in neuropathic pain. Unlike other nucleus, our studies are well consistent with the role of supraspinal TRPV1 receptor on pain transmission and modulation which was evidenced by intracerebroventricular (i.c.v.) SB366791, capsazepine or ruthenium red, another TRPV1 receptor antagonist injections which attenuated nocifensive behavior induced by an intradermal injection of capsaicin or formalin in mice [42]. Relatively, i.c.v. injection of capsaicin, decreased nociceptive threshold and reduced morphine and stress-induced analgesia [43,44,45]. In addition, labeling the CNS using CB-HRP is poor, but it an ideal dCSFCN tracer which is absorbed by neurons via their receptor [22]. Based on our prior experiment, we assumed that the CSF-CN is different from the general central nervous neurons and their function is similar to that of peripheral neurons. Similar to peripheral sites, sensitization associated with an up-regulation of CSF-CN TRPV1 receptor is thought to be at the base of the development of mechanical allodynia and thermal hyperalgesia in the chronic constriction injury of the sciatic nerve.

Recently, there has been great interest in therapeutic agents targeting TRPV1 receptors for several disorders. There is also evidence that TRPV1 receptors in the CNS are involved in pain modulation and might serve as useful drug targets. Our results as well as others indicate that bind to CSF-CN TRPV1 receptors could provide novel drug targets for neuropathic pain. These data presents a valid strategy and for pain relief and open up the perspective of curing currently untreatable conditions- neuropathic pain.


Our data suggest that the TRPV1 is expressed in the CSF-CN. The expression of TRPV1 was increased in CSF-CN by CCI surgery. Furthermore, i.c.v. administration of SB366791 exhibited an antiallodynic effect in CCI rats. The CSF-CN may play the important roles in neuromodulation and neuroendocrine regulation between brain parenchyma and CSF.


This work was supported in part by a grant of the National Natural Science Foundation of China (NSFC Grant No: 30871307) and the Natural Science Foundation of Jiangsu Province (No: BK2004028).


  1. Caterina MJ, Schumacher MA, Tominaga M, Rosen TA, Levine JD, et al. (1997) The capsaicin receptor: a heat-activated ion channel in the pain pathway. Nature 389: 816-824.
  2. Szallasi A, Blumberg PM (1999) Vanilloid (capsaicin) receptors and mechanisms. Pharmacol 51: 159-212.
  3. Ramsey IS, Delling M, Clapham DE (2006) An introduction to TRP channels. Annu Pev Physiol 68: 619-647.
  4. Nilus B, Voets T (2005) TRP channels: a TR(I)P through a world of multifunctional cation channels. Pflugers Arch 451: 1-10.
  5. Pedersen SF, Owsianik G, Nilius B (2005) TRP channels: an overview. Cell Calcium 38: 233-252.
  6. Montell C, Birnbaumer L, Flockerzi V (2002) The TRP channels, a remarkably functional family. Cell 108: 595-598.
  7. Matta JA, Miyares RL, Ahern GP (2007) TRPV1 is a novel target for omega-3 polyunsaturated fatty acids. Physiol J 578: 397-411.
  8. Holzer P (1988) Local effect or functions of capsaicin-sensitive sensory nerve endings: involvement of tachykinins, calcitonin gene-related peptid eandother neuropeptides. Neuroscience 24: 739-768.
  9. Szallasi A, Cruz F, Geppetti P (2006) TRPV1: a therapeutic target for novel analgesic drugs? Trends Mol Med 12: 545-554.
  10. Szallasi A, Appendino G (2004) Vanilloid receptor TRPV1 antagonists as the next generation of pain killers. Are we putting the cart before the horse? Med Chem J 47: 2717-2723.
  11. Steenland HW, Ko SW, Wu LJ, Zhuo M (2006) Hot receptors in the brain. Mol Pain 2: 34.
  12. Toth A, Boczan J, Kedei N, Lizanecz E, Bagi Z, et al. (2007) Expression and distribution of vanilloid receptor1 (TRPV1) in the adult rat brain. Mol Brain Res 135: 162-168.
  13. Mc Garaughty S, Chu KL, Bitner RS, Martino B, El Kouhen R, et al. (2003) Capsaicin infused into the PAG affects rat tail flick responses tonoxious heat and alters neuronal firing in the RVM. Neuro physiol J 90: 2702-2710.
  14. Mezey E, Tóth ZE, Cortright DN, Arzubi MK, Krause JE, et al. (2000) Distribution of mRNA for vanilloid receptor subtype1 (VR1), and VR1-like immunoreactivity, in the central nervous system of the rat and human. Proc Natl Acad Sci USA 97: 3655-3660.
  15. Roberts JC, Davis JB, Benham CD (2004) [3H] Resinifera toxin auto radiography in the CNS of wild-type and TRPV1 null mice defines TRPV1 (VR- 1) protein distribution. Brain Res 995: 176-183.
  16. Szabo T, Biro T, Gonzalez AF, Palkovits M, Blumberg PM (2002) Pharmacological characterization of vanilloid receptor located in the brain. Brain Res Mol Brain Res 98: 51-57.
  17. Marinelli S, Di Marzo V, Berretta N, Matias I, Maccarrone M, et al. (2003) Pre synaptic facilitation of glutamatergic synapses to dopaminergic neurons of the rats ubstantianigra by endogenous stimulation of vanilloid receptors. Neurosci J 23: 3136-3144.
  18. Marinelli S, Vaughan CW, Christie MJ, Connor M (2002) Capsaicin activation of glutamatergic synaptic transmission in the rat locus coeruleus in vitro. Physiol J 534: 531-540.
  19. Palazzo E, de Novellis V, Marabese I, Cuomo D, Rossi F, et al. (2002) Interaction between vanilloid and glutamate receptors in the central modulation of nociception. Eur J Pharmacol 439: 69-75.
  20. Cui M, Honore P, Zhong C, Gauvin D, Mikusa J, et al. (2006) TRPV1 receptors in the CNS play a key role in broad-spectrum analgesia of TRPV1 antagonists. Neurosci J 26: 9385-9393.
  21. Vígh B, Silva MJM, Frank CL, Vincze C, Czirok SJ, et al. (2004) The system of cerebrospinal fluid-contacting neurons. Its supposed role in the nonsynaptic signal transmission of the brain. Histol Histopathol 19: 607-628.
  22. Zhang LC, Zeng YM, Ting J, Cao JP, Wang MS (2003) The distributions and signaling directions of the cerebrospinal fluid contacting neurons in the parenchyma of a rat brain. Brain Res 989: 1-8.
  23. Lu XF, Geng XJ, Zhang LC, Zeng YM (2008) The methodology or labeling the distal cerebrospinal fluid-contacting neurons in rats. Neurosci Methods J 168: 98-103.
  24. Spaziante R, Merola B, Colao A (1990) Beta-endorphin concentrations both in plasma and in cerebrospinal fluid in response to acute painful stimuli. Neurosurg Sci J 34: 99-106.
  25. Wang MS, Zhang LC (1992) Methodological comparison on the tracing CSFCNs with HRP and CB-HRP. Acta Acad Med 12: 286-288.
  26. Marinelli S, Di Marzo V, Florenzano F, Fezza F, Viscomi MT, et al. (2007) N-arachidonoyl-dopamine tunes synaptic transmission onto dopaminergic neurons by activating both cannabinoid and vanilloid receptors. Neuro psychopharmacology 32: 298-308.
  27. Lipski J, Park TI, Li D, Lee SC, Trevarton AJ, et al. (2006) Involvement of TRPlike channels in the acute is mic response of hippocampal CA1 neurons in brain slices. Brain Res 1077: 187-199.
  28. Marsch R, Foeller E, Rammes G, Bunck M, Kossl M, et al. (2007) Reduced anxiety, conditioned fear, and hippocampal long-term potentiation in transient receptor potential vanilloid type1 receptor-deficient mice. Neurosci J 27: 832- 839.
  29. Shibasaki K, Suzuki M, Mizuno A, Tominaga M (2007) Effects of body temperature on neural activity in the hippocampus: regulation of resting membrane potentials by transient receptor potential vanilloid4. Neurosci J 27: 1566-1575.
  30. Lu XF, Li YY, Wang CG, Wei JQ, Ye Y, et al. (2011) Substance P in the cerebrospinal fluid-contacting nucleus contributes to morphine physical dependence in rats. Neuroscience Letters 488: 188-192.
  31. Du J, Yang XW, Zhang LC (2009) Expression of TRPM8 in the distal cerebrospinal fluid-contacting neurons in the brain mesencephalon of rats. Cerebrospinal Fluid Research 6: 3.
  32. Amaya F, Oh-hashi K, Naruse Y, Iijima N, Ueda M, et al. (2003) Local inflammation increases vanilloid receptor 1 expression within distinct subgroups of DRG neurons. Brain Res 963: 190-196.
  33. Hudson LJ, Bevan S, Wotherspoon G, Gentry C, Fox A, et al. (2001) VR1 protein expression increases in undamaged DRG neurons after partial nerve injury. Eur J Neurosci 13: 2105-2114.
  34. Asai H, Ozaki N, Shinoda M, Nagamine K, Tohnai I, et al. (2005) Heat and mechanical hyperalgesia in mice model of cancer pain. Pain 117: 19-29.
  35. Wang P, Yuke T (2009) Research progress in mechanism of spinal cord in neuropathic pain. Chinese Journal of Pain Medicine 15: 1.
  36. Gibson HE, Edwards JG, Page RS, Van Hook MJ, Kauer JA (2008) TRPV1 Channels Mediate Long-Term Depression at Synapses on Hippocampal Interneurons. Cell Neuron 57: 746-759.
  37. Liapi A, Wood JN (2005) Extensive co-localization and hetero multimer formation of the vanilloid receptor-like protein TRPV2 and the capsaicin receptor TRPV1 in the adult rat cerebral cortex. Eur J Neurosci 22: 825-834.
  38. Sasamura T, Sasaki M, Tohda C, Kuraishi Y (1998) Existence of capsaicinsensitive glutamatergic terminals in rat hypothalamus. Neuro report 22: 2045- 2048.
  39. Millan MJ (1999) The induction of pain: an integrative review. Prog Neurobiol 57: 1-164.
  40. Millan MJ (2002) Descending control of pain. Prog Neurobiol 66: 355-474.
  41. Palazzo E, Luongo L, de Novellis V, Berrino L, Rossi F, et al. (2010) Moving towards supraspinal TRPV1 receptors for chronic pain relief. Molecular Pain 6: 66.
  42. Santos AR, Calixto JB (1997) Ruthenium red and capsazepine antinociceptive effect informalin and capsaicin models of pain in mice. Neurosci Lett 235: 73- 76.
  43. Michael GJ, Priestly JV (1999) Differential expression of the mRNA forthe vanilloid receptor subtype 1 in cells of the adult rat dorsalroot and nodose ganglia and its down reguation by axotomy. Neurosci J 19: 1844 -1854.
  44. Bodnar RJ, Kirchgessner A, Nilaver G, Mulhern J, Zimmerman EA (1982) Intra ventricular capsaicin: alterations in analgesic responsivity without depletion of substance P. Neuroscience 7: 631-638.
  45. Bodnar RJ, Simone DA, Kordower JH, Kirchgessner AL, Nilaver G (1983) Capsaicin treatment and stress-induced analgesia. Pharmacol Biochem Behav 18: 65-71.
Citation: Xu C, Zhao Z, Wu T, Zhang L (2011) Distribution of TRPV1 in CSF Contacting Nucleus of Rat Brain Parenchyma and its expression in Neuropathic Pain. J Neurol Neurophysiol 2:114.

Copyright: © 2011 Xu C, et al. This is an open-access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original author and source are credited.
